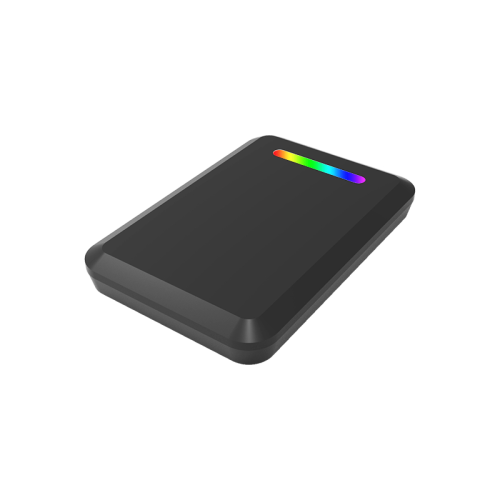

Desktop Reader
The device supports USB read-only and read/write modes, along with USB virtual serial port and USB keyboard emulation outputs for flexible connectivity. It also supports Wiegand 26/34 output, enabling seamless integration with access control, attendance, and identification systems. Widely used in desktop enrollment stations, tag encoding, item issuing and return desks, document tracking, library circulation counters, access card issuance, and RFID data capture at workstations.
Product Specifications
| Frequency | 902~928MHz |
| Protocol | ISO18000-6C (EPC GEN2) |
| RF Output Power | 0-17dbm(Adjustable) |
| Reading distance | 0~50cm |
| Operating mode | USB read-only/read-write mode |
| RSSI | Support |
| Standard interface | USB |
| Sound and light indication | RGB colorful lights, buzzer |
| Power supply | 5V |
| Material | ABS |
| Dimensions | 85*125*18.8mm |
| Net Weight | 150g |
| Operating temperature | -10~+65℃ |
| Storage temperature | -25~+80℃ |
